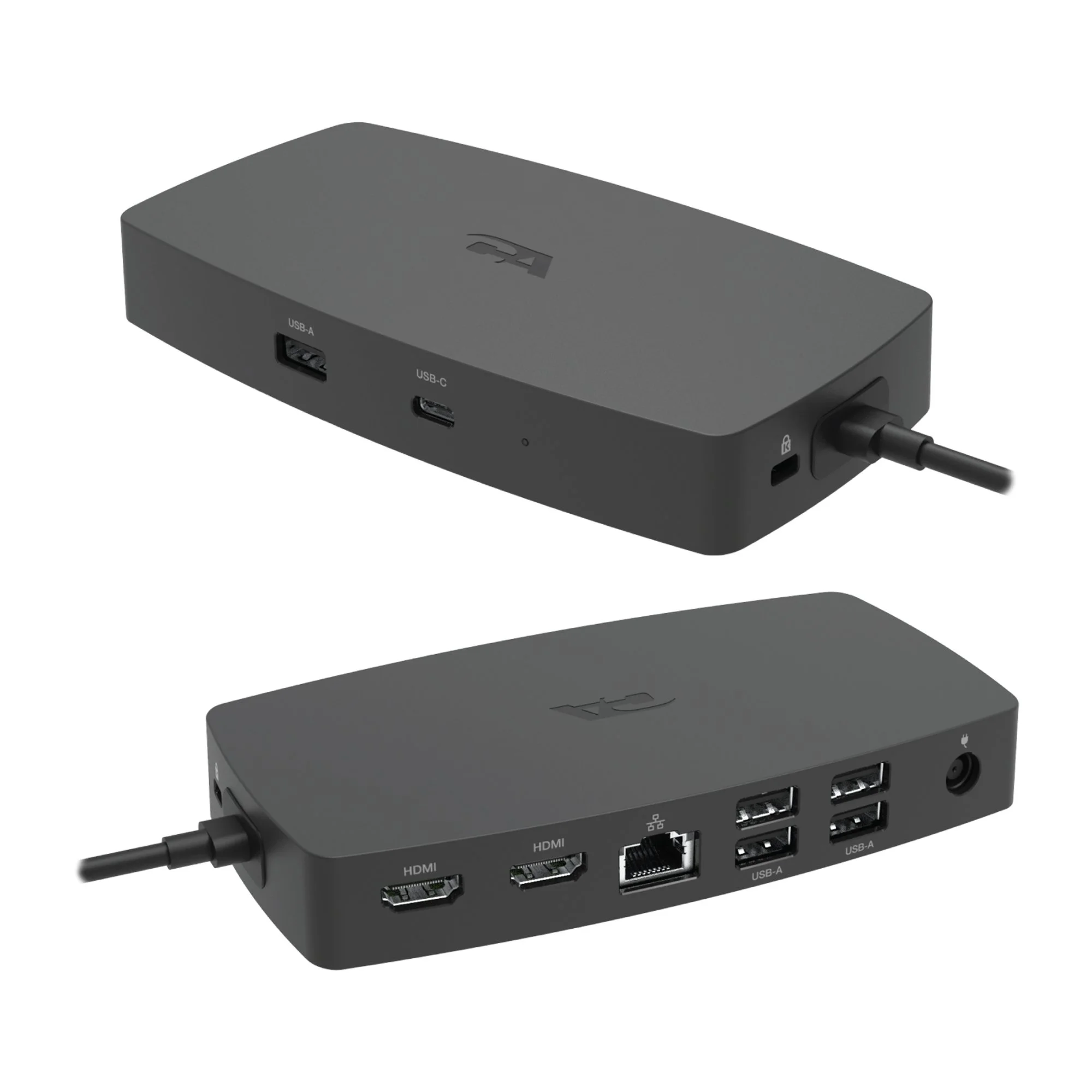

CA Essential Laptop Docking Station
DS-1000
The CA Essential Laptop Docking Station DS-1000 is a versatile, compact solution to organize your workspace, power your laptop, and connect all your peripherals with a single USB-C cable. It’s TAA compliant and compatible with laptops that have USB-C or Thunderbolt 3 ports.
Organize Your Workspace – Connect all your peripherals with a single USB-C cable and create an organized workspace. This USB-C laptop docking station is compatible with laptops that have USB-C or Thunderbolt 3 ports. Complete flexibility with the built-in 0.8-meter (2.6 foot) cable.

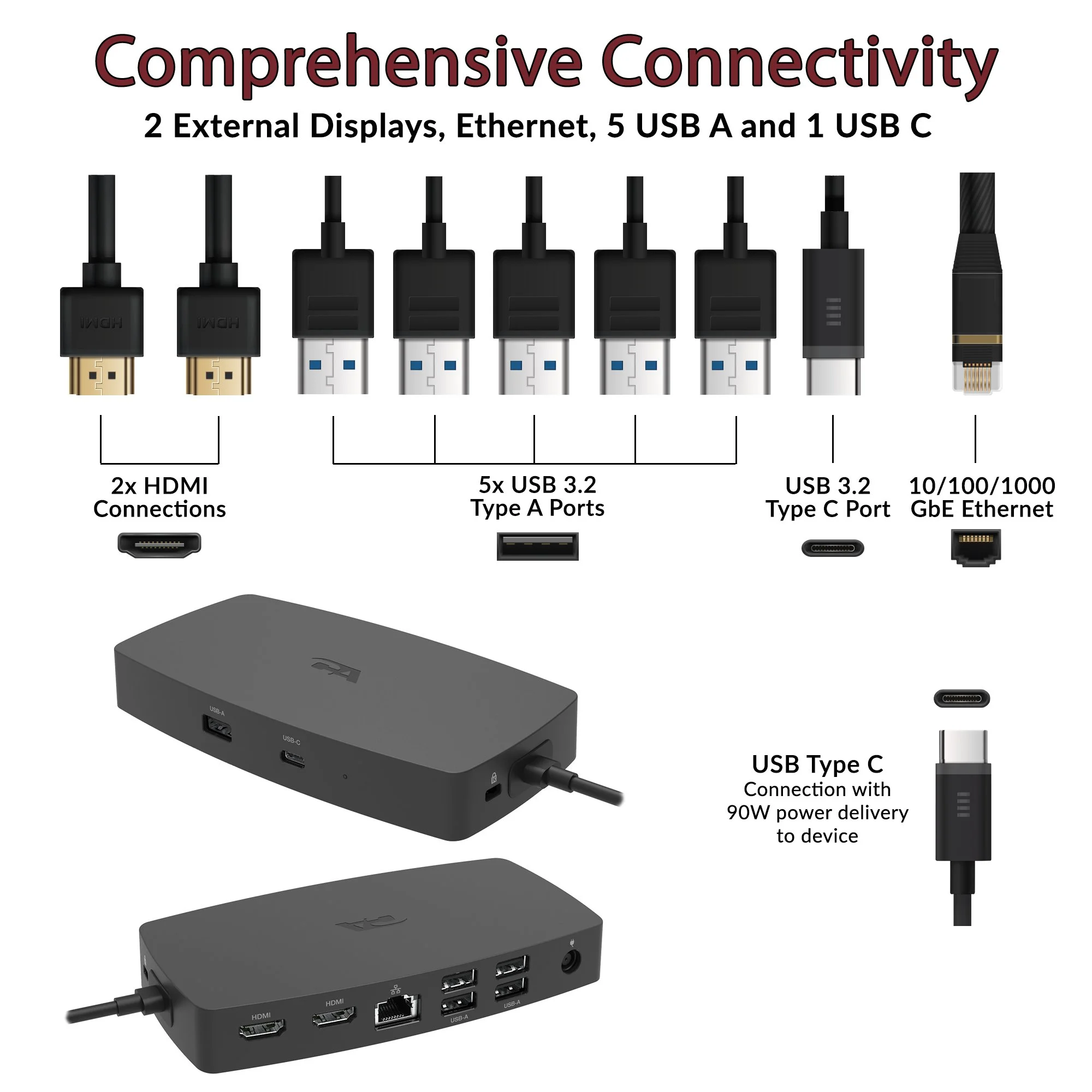

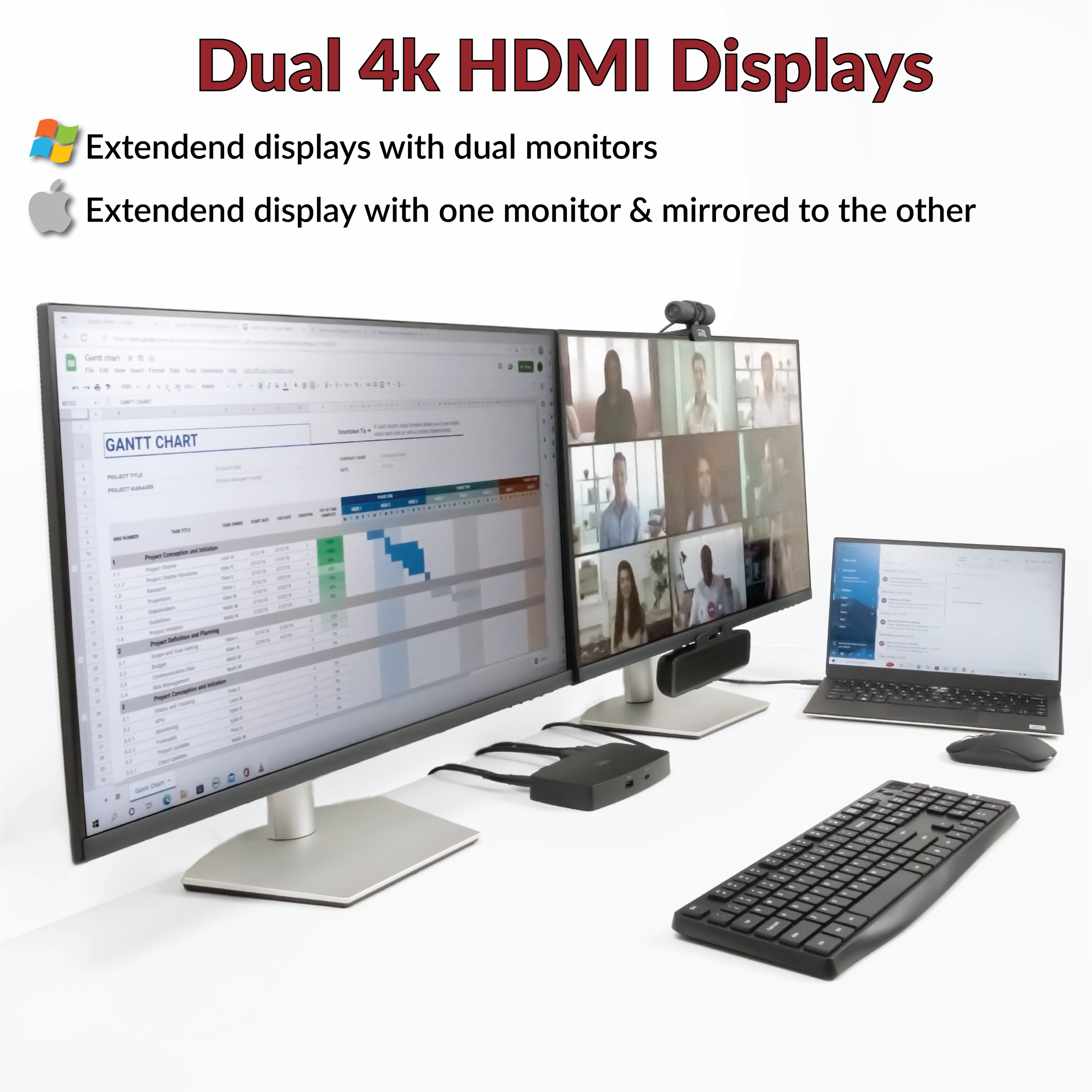

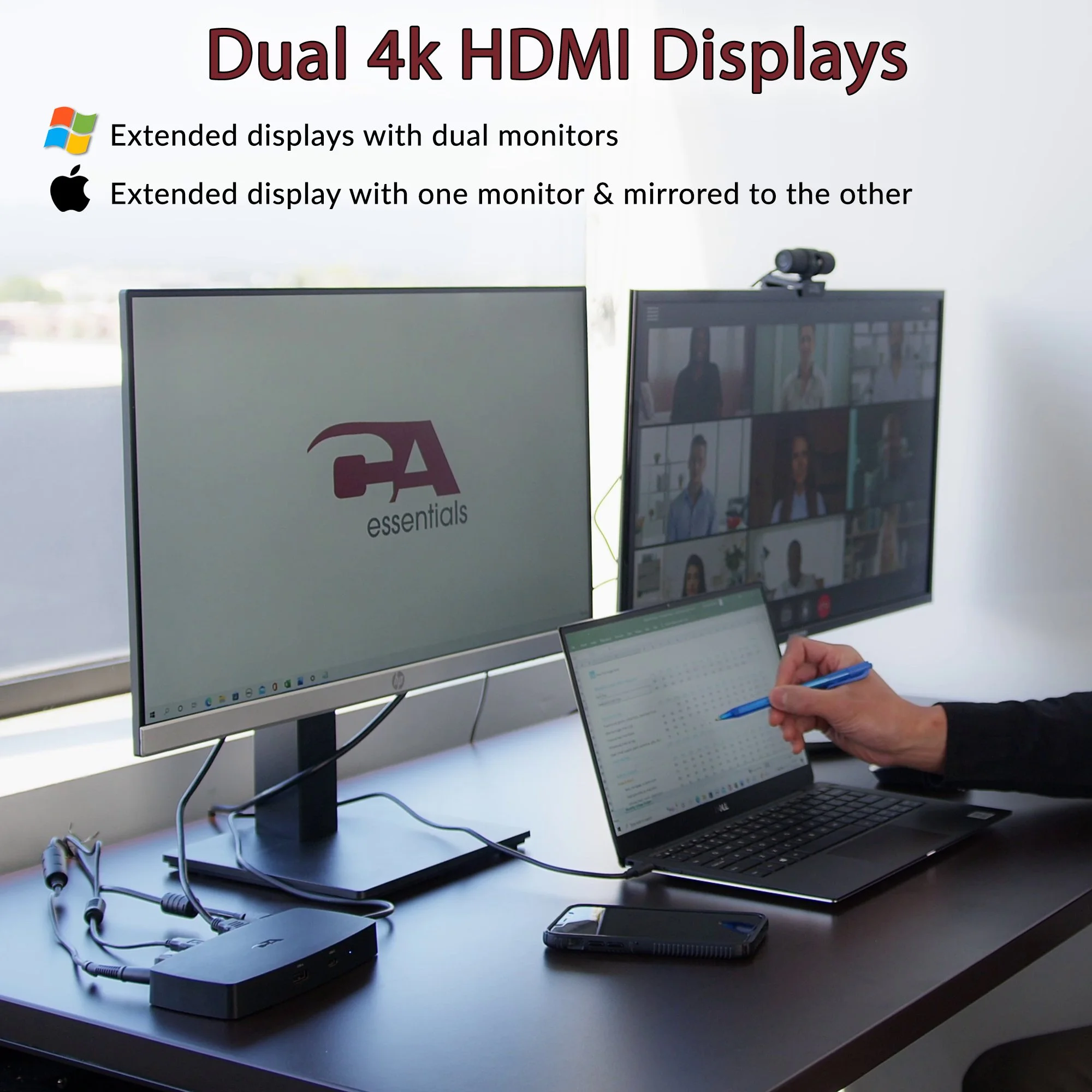

Complete Connectivity – Simultaneous dual HDMI monitor displays up to 4K@60Hz; Four USB-A 3.2 Gen 2 ports on the back; one USB-A 3.2 Gen 2 and one USB-C 3.2 Gen 2 port on the front, One RJ-45 Gigabit Ethernet Port, Integrated security K-Slot (lock cable not included). Supports extended displays for both displays on Windows 10 or 11, extended display on one monitor and mirroring on the other for Mac OS. For dual monitor display, the USB-C port must have Alt Mode. Most USB-C ports that have Alt Mode are 3.2 with 10Gps.

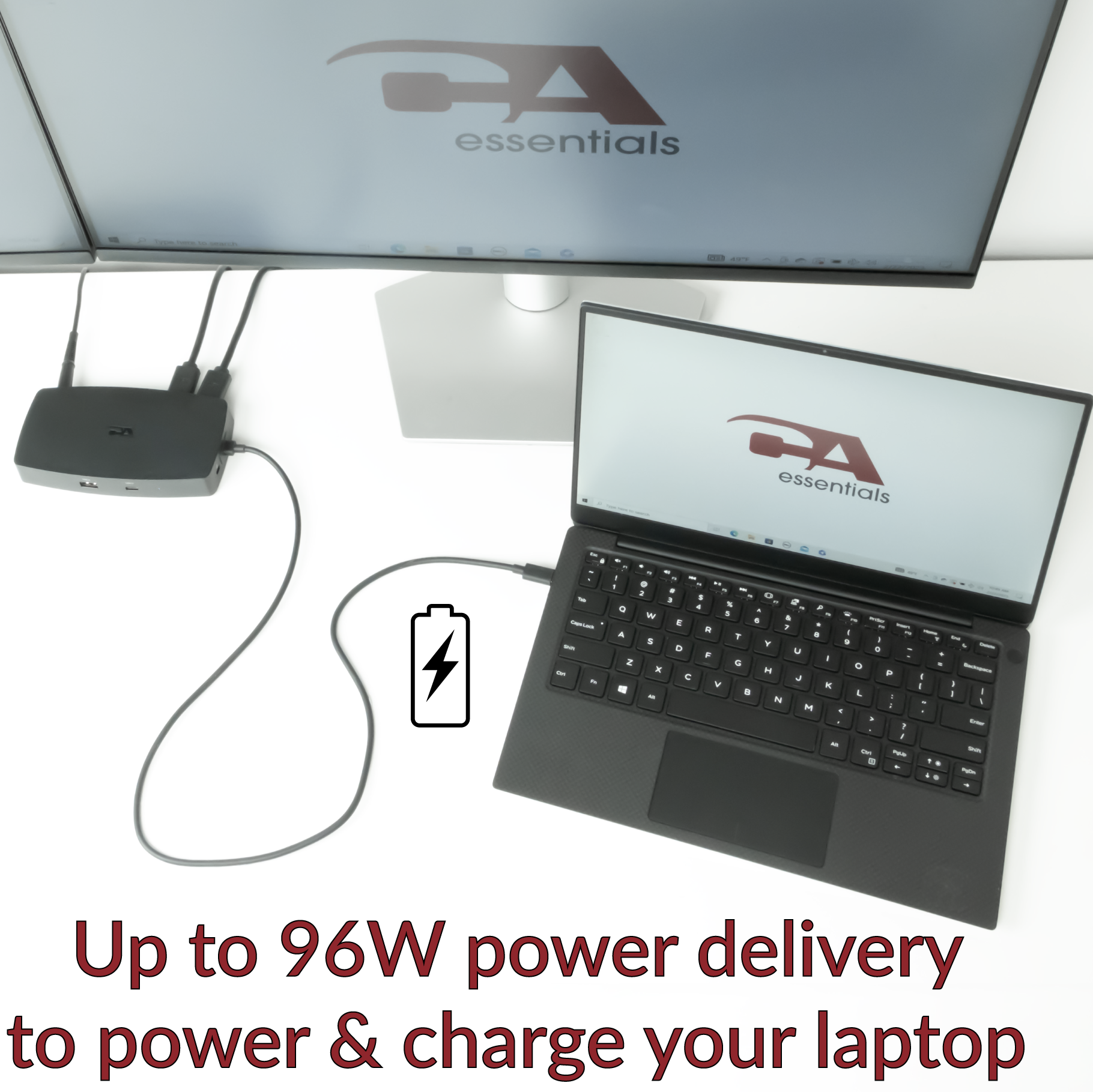

Charge Your Laptop – When connected to your laptop with the USB-C cable the CA Essential Laptop Docking Station charges your laptop up to 96-Watt power delivery. The included 130-Watt dual voltage power adapter provides enough power for the docking station and power for your laptop.
Included – CA Essential Laptop Docking Station, 130-Watt Dual Voltage (120/230V) AC Power Adapter, User Guide; Dimensions – 6.3 inch length, 3.3 inch width, 0.9 inch in height; Dock Weight – 7.5 ounces.
TAA Compliant for U.S. Government
MSRP 169.99
Click here for more information on choosing the right laptop docking station
Laptop Connection: | USB-C |
Max Video Resolution: | (x2) HDMI Both ports at 4k@60Hz |
USB Ports: | (x5) USB-A 3.2 (x1) USB-C 3.2 |
Ethernet: | RJ45 10/100/1000 GbE |
Power Delivery: | Up to 90W (power adapter included) |
K-Lock: | Yes (Cable not included) |
Dimensions: | 6.3 x 3.3 x 0.9 inches |
Compatible OS: | Windows 10 64-bit, Windows 11 |
Manual |
Data Sheet |
Support |
Home > Products > Docking Stations > CA Essential Laptop Docking Station DS-1000
CA Essential Laptop Docking Station DS-1000 | HP USB-C Dock G5 | ThinkPad USB-C Dock Gen 2 | Targus | Dell Dock | |
Model | DS-1000 | 5TW10UT#ABA | 40AS0090US | Dock430USZ | WD19s |
MSRP | $189.99 | $209.00 | $220.00 | $260.00 | $235.99 |
Laptop Connection | USB-C | USB-C | USB-C | USB-C | USB-C |
Power Delivery | Up to 96W with 130W Adapter | 85W | 60W | 85W | 90W with 130W Adapter |
HDMI | (x2) HDMI 2.0 | (x1) HDMI 2.0 | (x1) HDMI | (x1) HDMI | (x1) HDMI 2.0b |
Display Ports | No | (x2) Display Ports | (x2) Display Ports | (x2) Display Ports | (x2) Display Ports (x1 USB-C Multifunctional Display Port) |
USB Ports | (x5) USB-A 3.2 (x1) USB-C 3.2 | (x1) USB-C (x4) USB-A 3.0 | (x3) USB-A 3.1 (x2) USB-A 2.0 | (x4) USB-A | (x3) USB-A 3.1 Gen 1 (x1) USB-C |
Audio Jack | No | 1 combo audio jack | 1 combo audio jack | 1 combo audio jack | No |
Ethernet | 10/100/1000 GbE | 10/100/1000 GbE | 10/100/1000 GbE | 10/100/1000 GbE | 10/100/1000 GbE |
Security Lock Slot | Yes | Yes | Yes | Yes | Yes |
Dimensions | 6.3 x 3.3 x 0.9 inches | 4.8 x 4.8 x 1.77 inches | 8.3 x 6.2 x 2.95 inches | 7.10 x 3.25 x 1.10 inches | 8.1 x 3.5 x 1.1 inches |
Weight | 7.5 Ounces | 26.4 Ounces | 11.46 Ounces | 33.86 Ounces | 20.63 Ounces |
